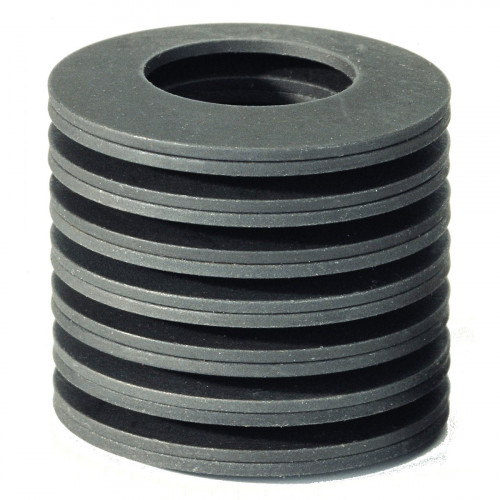

Non-contractual photo
Price Rules
This piece is packaged in boxes of
200 units.
We apply a surcharge for deconditioning according to the following rules
| Quantity | Price |
|---|---|
| 200 piece(s) | 0.29435 € |
| 100 piece(s) | 0.53572 € |
| 50 piece(s) | 0.71233 € |
| 25 piece(s) | 0.89189 € |
| 10 piece(s) | 1.06850 € |
| 1 unit | 1.18722 € |
Dynamic spring washer for shimming DIN 2093 15mm X 5.2mm X 0.5mm steel Ck67
Référence TDI : 4-1-624-115-15-5.2-0.50-46
Specifications
| Shape | ressort dynamique |
| Standard | DIN 2093 |
| Diamètre extérieur | 15mm |
| Diamètre intérieur | 5.2mm |
| Epaisseur | 0.50 mm |
| Material | acier 50Ck67 |
Description :
Spring washers are conical washers exposed to axial loads in static or dynamic applications. Standard spring washers do not have a mailsupport surface, but some are equipped with one. The dimensions of the washer are precise and regular so that the load is evenly distributed.
Advantages:
- High compressive loads
- Limited space required for function
- Long life cycle and low tendency to settling if stacking is well calculated
- Numerous combinations to achieve the best load characteristics
- Wide range of standard sizes
- Special materials and coatings on request
Standard material:
Steel: CK 67 (1.1231) thickness < 1.25 mm shot peening for thickness > 0.5 mm + phosphatizing
Steel: 50 CrV4 (1.8159) thickness > 1.25 mm shot peening for thickness > 0.5 mm + phosphatizing
Stainless steel: X 12 Cr Ni 17-7 max. thickness 2 mm
