Non-contractual photo

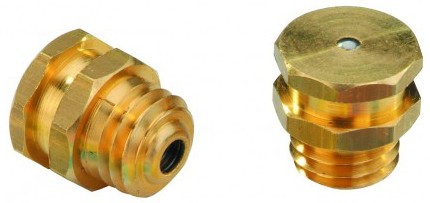

Flat head grease nipple DIN 3404 M12X1.00 brass
Référence TDI : 44-1-666-117-12-100-20
Specifications
| Shape | tête plate |
| Standard | DIN 3404 |
| Diameter | M12 |
| Thread | 1.00 |
| Material | laiton |
Description :
Flat-head grease nipple DIN 3404 double hexagon. These products can be supplied with color-coded rings to indicate lubrication intervals.
| RED Daily lubrication |
YELLOW Weekly lubrication |
BLUE Monthly lubrication |
Similar products :
| Designation | Diameter | Thread | ||
|---|---|---|---|---|
 |
Flat head grease nipple DIN 3404 1/4GAZ brass | 1/4 | GAZ | |
|
Flat head grease nipple DIN 3404 3/8GAZ brass | 3/8 | GAZ | |
|
Flat head grease nipple DIN 3404 M10X1.00 brass | M10 | 1.00 | |
|
Flat head grease nipple DIN 3404 M10X1.50 brass | M10 | 1.50 | |
 |
Flat head grease nipple DIN 3404 M12X1.50 brass | M12 | 1.50 | |
|
Flat head grease nipple DIN 3404 M12X1.75 brass | M12 | 1.75 | |
|
Flat head grease nipple DIN 3404 M14X1.50 brass | M14 | 1.50 | |
|
Flat head grease nipple DIN 3404 M14X2.00 brass | M14 | 2.00 | |
|
Flat head grease nipple DIN 3404 M6 X1.00 brass | M6 | 1.00 | |
|
Flat head grease nipple DIN 3404 M8 X1.25 brass | M8 | 1.25 |
