Non-contractual photo
Price Rules
This piece is packaged in boxes of
100 units.
We apply a surcharge for deconditioning according to the following rules
| Quantity | Price |
|---|---|
| 100 piece(s) | 4.10446 € |
| 50 piece(s) | 6.23879 € |
| 25 piece(s) | 7.47013 € |
| 10 piece(s) | 8.70147 € |
| 1 unit | 9.33766 € |

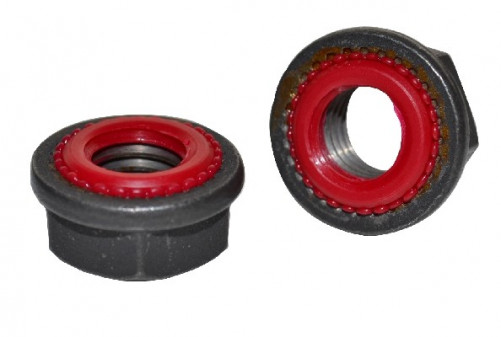

M10 X 1.50 steel class 8 SEAL-LOCK® sealing nut
Référence TDI : 2-1-404-10-150-62-36
Specifications
| Shape | d'étanchéité |
| Diameter | M10 |
| Thread | 1.50 |
| Material | acier classe 8 |
Description :
Material: class 8 heat-treated steel - polyamide 11 gasket
One-piece element for simplified assembly. Gas- and liquid-tight. Temperature-resistant from -40°C to +100°C. Maximum locking torque for assembly tensioning. Resistant to vibration (screw brake). Non-tightening thanks to deformable plastic ring. Wide choice of dimensions. Provides an economical, reliable solution for assembly and sealing. Eliminates the need for sealing washers or parts requiring additional machining of the bearing surface.
Similar products :
| Designation | Diameter | Thread | ||
|---|---|---|---|---|
 |
Ecrou d'étanchéité M10 X 1.00 acier classe 8 SEAL-LOCK® | M10 | 1.00 | |
|
Ecrou d'étanchéité M12 X 1.50 acier classe 8 SEAL-LOCK® | M12 | 1.50 | |
|
Ecrou d'étanchéité M14 X 1.50 acier classe 8 SEAL-LOCK® | M14 | 1.50 | |
 |
M12 X 1.75 steel class 8 SEAL-LOCK® sealing nut | M12 | 1.75 | |
|
M6 X 1.00 steel class 8 SEAL-LOCK® sealing nut | M6 | 1.00 | |
|
M8 X 1.00 steel class 8 SEAL-LOCK® sealing nut | M8 | 1.00 | |
|
M8 X 1.25 steel class 8 SEAL-LOCK® sealing nut | M8 | 1.25 |
