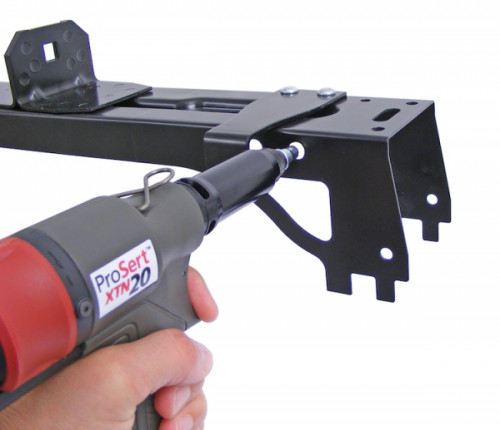

Pneumatic installation tool for M4 to M8 crimping nuts ref XTN20 STANLEY®
Référence TDI : 12-1-740-4/8-47
Specifications
| Shape | Pneumatique pr écrou à sertir |
| Diameter | M4 à M8 |
| Poids | 1.59 kg |
Description :
Lightweight, ergonomic, extremely powerful and versatile, the XTN20 installation tool satisfies the majority of installation operators' needs. Its "tool-less" technology, optimal ergonomics and low noise level make it a must-have tool. Its moderate cost and reliability justify your investment.
Pulling force at 5.0 bar: 17.65kN , 3968 lbf. Pneumatic supply pressure: Min/Max: 5-7 bar , 72.5-101.5 lbf/in². Noise level: <75 dB(A) , <75 dB(A). Piston stroke: 3-7 mm , 0.118-0.275 in. Weight (with nose) 1.59 kg , 3.50 lb.
Tool supplied with installation equipment from M4 to M8
No tools required, quick access to stroke adjustment
No tools required to change installation equipment
No tools required to set crimping pressure
Download the TDI brochure on crimping nuts and installation tools
