Non-contractual photo
Price Rules
This piece is packaged in boxes of
10 units.
We apply a surcharge for deconditioning according to the following rules
| Quantity | Price |
|---|---|
| 10 piece(s) | 25.05543 € |
| 1 unit | 33.61604 € |

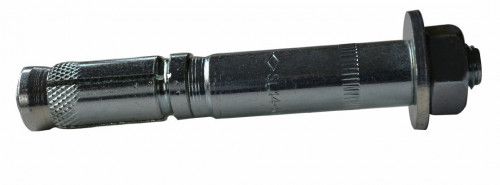

SL-B safety bolt 28mm X 30mm X 190mm MKT® zinc-plated steel
Référence TDI : 47-1-3-28-30-190-1-43-26
Specifications
| Type | SL-B |
| Diameter | 28mm |
| Epaisseur fixable | 30 |
| Longueur totale | 190mm |
| Material | acier |
| Protection | zingué |
Description :
The ETA-approved heavy-duty anchor bolt option 1 is a high-performance transverse anchoring system. Its triple-acting expansion ring allows very high loads to be accommodated, even in the presence of small center-to-center and edge distances. The plastic ring ensures that the anchor is permanently locked to the substrate, while preventing rotation of the bolt during installation. The model is approved against impact.
Applications: Anchoring medium and heavy loads in cracked and uncracked concrete. For example: steel supports and feet, railings, machinery, scaffolding, brackets.
Similar products :
| Designation | Epaisseur fixable | Longueur totale | ||
|---|---|---|---|---|
 |
SL-B safety bolt 14mm X 10mm X 96mm MKT® zinc-plated steel | 10 | 96mm | |
|
SL-B safety bolt 14mm X 50mm X 136mm MKT® zinc-plated steel | 50 | 136mm | |
|
SL-B safety bolt 28mm X 0mm X 165mm MKT® zinc-plated steel | 165mm |
