Home › Our products › Screws › Hexagon screws inch › shouldered ground ANSI B18.3 steel UNC American thread › Socket head cap screw ANSI B.18.3 gr.8 shouldered body 5/16 1/4 NC-20 threads X 3/8

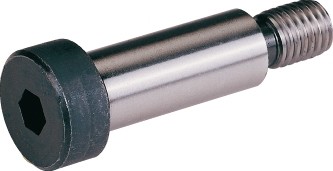

Non-contractual photo

Price Rules

This piece is packaged in boxes of 25 units.
We apply a surcharge for deconditioning according to the following rules

Socket head cap screw ANSI B.18.3 gr.8 shouldered body 5/16 1/4 NC-20 threads X 3/8

Référence TDI : 1-3-7-2-1/4-20-3/8-9

Price: 178.76 € Tax incl. for 25 Currently being restocked

excl. vat

+ -

Buy now

Specifications

Shape	tête cylindrique 6 pans creux corps épaulé
Standard	ANSI B.18.3
Diamètre nc	1/4NC
Nbre Filets/"	20
Longueur	3/8"
Material	grade 8

Designation	Diamètre nc	Longueur	Nbre Filets/"

Hexagon socket head cap screw ANSI B.18.3 gr. 8bodies shouldered 5/8 1/2 NC-13 threads X 11/2	1/2NC	1"1/2	13	Details
Hexagon socket head cap screw ANSI B.18.3 gr.8 shoulder 5/8 1/2 NC-13 threads X 2"1/4	1/2NC	2"1/4	13	Details
Hexagon socket head cap screw ANSI B.18.3 gr.8 shoulder body 1/2 3/8NC-16 threadsX 1"1/4	3/8NC	1"1/4	16	Details
Hexagon socket head cap screw ANSI B.18.3 gr.8 shoulder body 3/8 5/16NC-18 threads X 2"1/4	5/16NC	2"1/4	18	Details
Hexagon socket head cap screw ANSI B.18.3 gr.8 shouldered body 1/2 3/8 NC-16 threads X 2"	3/8NC	2"	16	Details
Hexagon socket head cap screw ANSI B.18.3 gr.8 shouldered body 1/4 10 NC-24 threads X 1/2	10NC	1/2"	24	Details
Hexagon socket head cap screw ANSI B.18.3 gr.8 shouldered body 1/4 10NC-24 threads X 1"1/4	10NC	1"1/4	24	Details
Hexagon socket head cap screw ANSI B.18.3 gr.8 shouldered body 1/4 10NC-24 threads X 11/2	10NC	1"1/2	24	Details
Hexagon socket head cap screw ANSI B.18.3 gr.8 shouldered body 1/4 10NC-24 threads X 5/8	10NC	5/8"	24	Details
Hexagon socket head cap screw ANSI B.18.3 gr.8 shouldered body 3/4 5/16 NC-11filets X 43/4	5/8NC	4"3/4	11	Details
