Non-contractual photo
Price Rules
This piece is packaged in boxes of
25 units.
We apply a surcharge for deconditioning according to the following rules
| Quantity | Price |
|---|---|
| 25 piece(s) | 20.68669 € |
| 10 piece(s) | 29.99570 € |
| 1 unit | 33.44348 € |

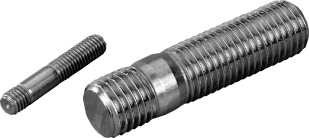

Dowel DIN 938 16mm X 40mm stainless steel 316L Mo+80 KG BUMAX 88®
Référence TDI : 10-1-166-16-40-5-2
Specifications
| Standard | DIN 938 |
| Diameter | 16mm |
| Longueur | 40mm |
| Material | inox 316L80 |
Description :
Breaking strength Rm: 800 N/mm2 minimum
Yield strength Rp 0.2: 640 N/mm2 minimum
Elongation after break: 0.3 D
Diameter of smooth part = nominal diameter

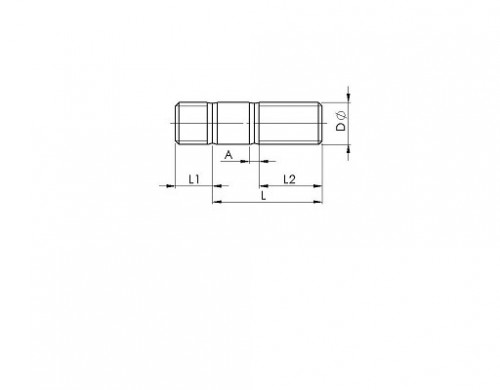

For dimensions above the line L2=L(A+3)
