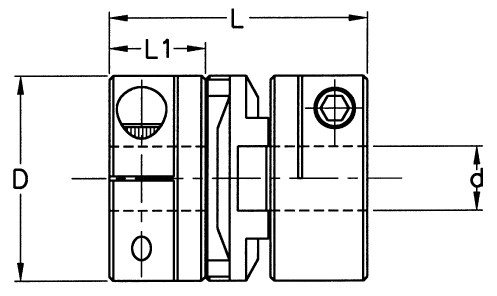

Interchangeable disc coupling 6 x 25.4 aluminium
Express delivery 24–48 hours in mainland France
Verified stock in real time
Degressive pricing and larger quantities available on request Specifications
| Encombrement | 6X25.4 |
| Shape | à disque interchangeable |
| Material | aluminium |
Description :
These couplings are suitable for applications where movement is controlled. They consist of aluminum hubs facing each other and separated by a plastic disk housing drive pins. Their design facilitates sliding to compensate for misalignment under light loads. They electrically isolate the hubs, have low inertia and a balanced design particularly suited to high rotation speeds. Interchangeable discs are available in 2 materials:
- Nylon discs are designed for applications where vibration damping and noise reduction are desired.
- Acetal discs are recommended for precision applications where exact reproduction of motion and transmission of higher torques are required.
COUPLING MATERIALS
Steel: C12L14 cold-drawn bar up to 5"1/4. C1117, C1117L or C12L14 bar from 5"1/2 to 7"3/4.
Aluminum: Aluminum bar 7075 - T651
Stainless steel: Bright finish
Similar products :
| Designation | Diamètre | Encombrement | ||
|---|---|---|---|---|
 |
Interchangeable disc coupling 14 x 50.8 aluminium | 14X50.8 | ||
 |
Interchangeable disc coupling 16 x 33.3 aluminium | 16X33.3 | ||
|
Interchangeable disc coupling 25 x 50.8 aluminium | 25X50.8 | ||
|
Interchangeable disc coupling 25 x 57.2 aluminium | 25X57.2 | ||
|
Interchangeable disc coupling 5 x 19.1 aluminium | 5X19.1 | ||
|
Interchangeable disc coupling 8 x 19.1 aluminium | 8X19.1 |
