NORD-LOCK® – Safety of bolted assemblies.
Thanks to cam-lock technology, Nord-Lock® washers meet the requirements of all industrial applications where bolting safety and reliability are essential.
Nord-Lock products secure bolted joints, even when exposed to vibrations and high dynamic loads.
The system cannot loosen unintentionally due to the cam effect created under the screw head or nut.
CAM EFFECT TECHNOLOGY
Nord-Lock cam-lock technology secures bolted joints by using tension rather than friction.
The system consists of a pair of locking washers with cams on one side and radial teeth on the other.
Nord-Lock cam-lock products secure a fastener in an assembly that cannot loosen when exposed to vibrations or extreme dynamic loads.
The Nord-Lock range includes SC washers for metal construction, wheel nuts, Combi Bolt washers and customised solutions.
Tightening
When the bolt and/or nut is tightened, the serrations grip the surfaces and lock them in place. The Nord-Lock safety washer
is locked in place, allowing movement only on the cam faces.
Since the cam angle α is greater than the thread pitch β, the cams create a wedging effect that prevents the bolt from turning freely.
Any attempt to rotate the bolt relative to the nut is blocked by the cam effect.
Detachement
When the fastener is not tightened, slippage occurs between the two washers. The upper washer is locked under the nut, or under the screw head, by the grooves.
The lower washer does not rotate because the lower ridges are locked into the surface to be tightened.
When the cams slide over each other, the tightening load in the screw is first increased by its stretching, before being released when the cams pass over each other.
How does it work?
Nord-Lock cam-lock technology secures bolted joints by tension rather than friction.
The system consists of a pair of washers with cams on one side and splines on the other.
The pair of washers uses the cam geometry to effectively prevent the bolt from loosening.
Nord-Lock product range®
Nord-Lock® Original washers
Nord-Lock's original cam-lock washers secure bolted joints, even when exposed to high vibrations and dynamic loads.
Nord-Lock® washers X-Series
Thanks to their conical shape, Nord-Lock X-Series washers, with their unique design, protect bolted joints against spontaneous loosening and relaxation of bolts.
Nord-Lock® Steel construction washers
Nord-Lock Steel Construction (SC) washers are cam-lock washers specially designed for applications in steel construction, in accordance with European standards EN 14399-3 /EN 14399-4 /EN 14399-8.
Nord-Lock® wheel nuts
Nord-Lock wheel nuts secure the wheels of heavy-duty vehicles on and off the road by maintaining high clamping force, even under extreme operating conditions.
Nord-Lock® Combi nuts
Combination nuts, which combine a nut with a pair of original Nord-Lock washers, simplify assembly, reduce errors and optimise efficiency.
Nord-Lock® customised solutions
As pioneers in bolt fastening technology, it is in Nord-Lock's nature to find new ways to address bolting challenges.
AN APPROVED SOLUTION

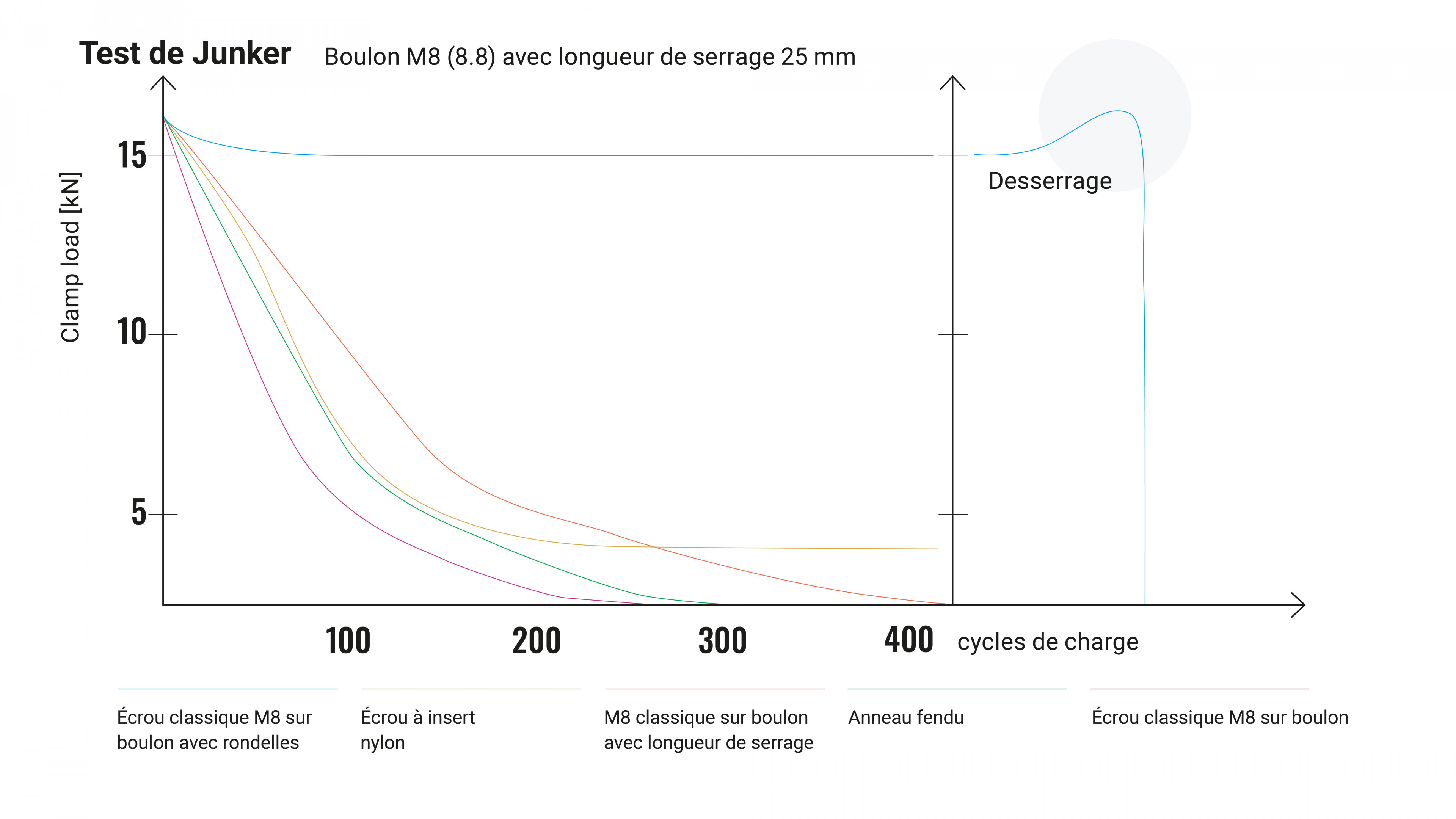

The Junker test* is the most demanding vibration test for bolted joints.
During the Junker test, the curve shows that the clamping force of all solutions drops significantly, except for Nord-lock washers.
* According to DIN65151 standard.
NORD-LOCK GROUP, A HUB OF INNOVATION AND ENGINEERING
Nord-Lock Group offers the technologies you need to overcome your bolting challenges.
In 1982, the original Nord-Lock® cam-effect locking technology, which truly secures bolted joints, was developed.
Since then, our range of assembly technologies and expertise has become the most comprehensive on the market, incorporating Superbolt® mechanical tensioners, Boltight® hydraulic tensioners and Expander® bolts.
All solutions are developed and manufactured in-house, ensuring they meet the highest industry standards. Our team of dedicated experts works closely with customers around the world.
